About This

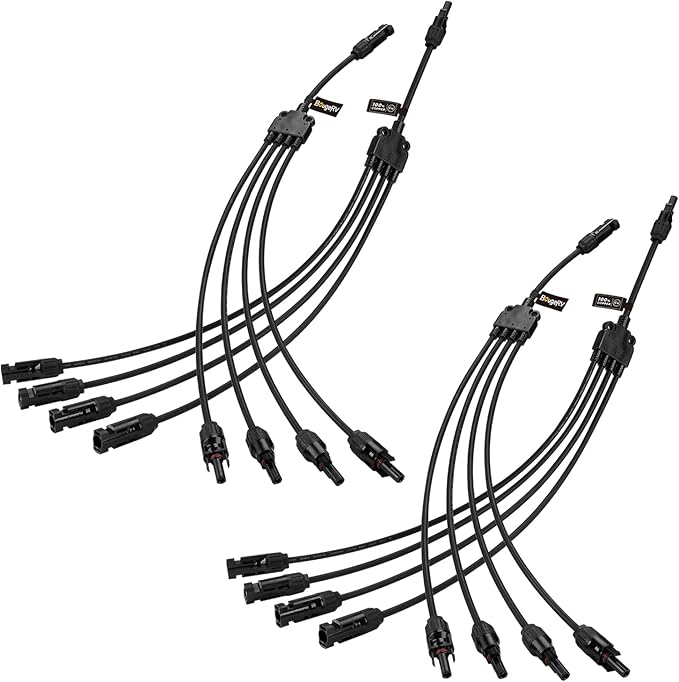

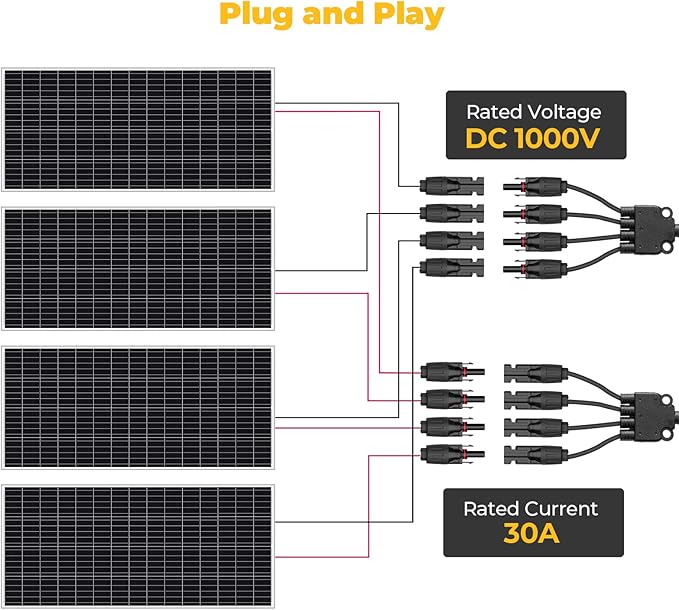

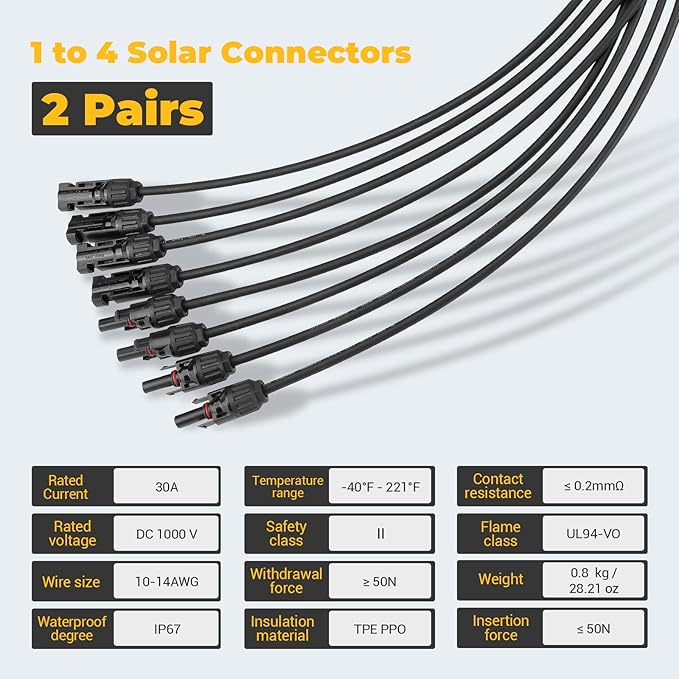

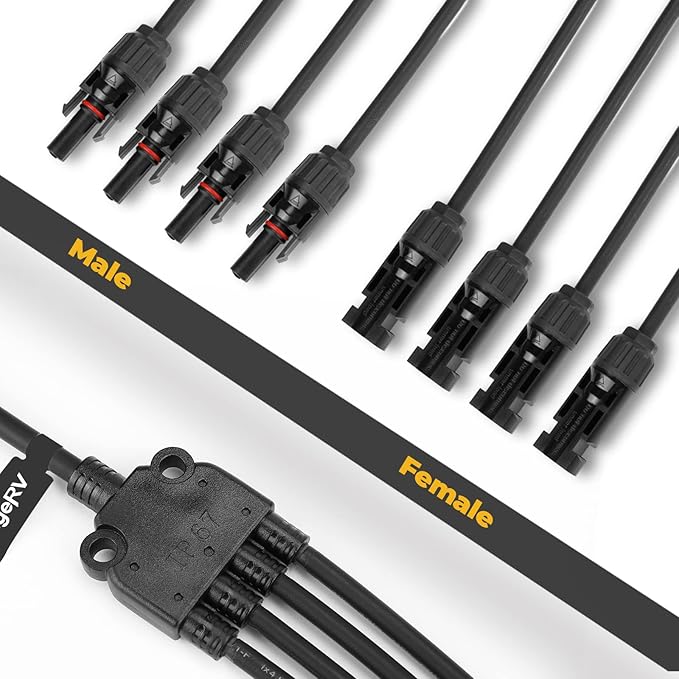

• 【Solar Y Branch Parallel Connectors】Rated Current: 30A, Rated Voltage: DC1000V. It can connect four solar panels in parallel, with 1 male to 4 female(M/FFFF) and 1 female to 4 male(F/MMMM).

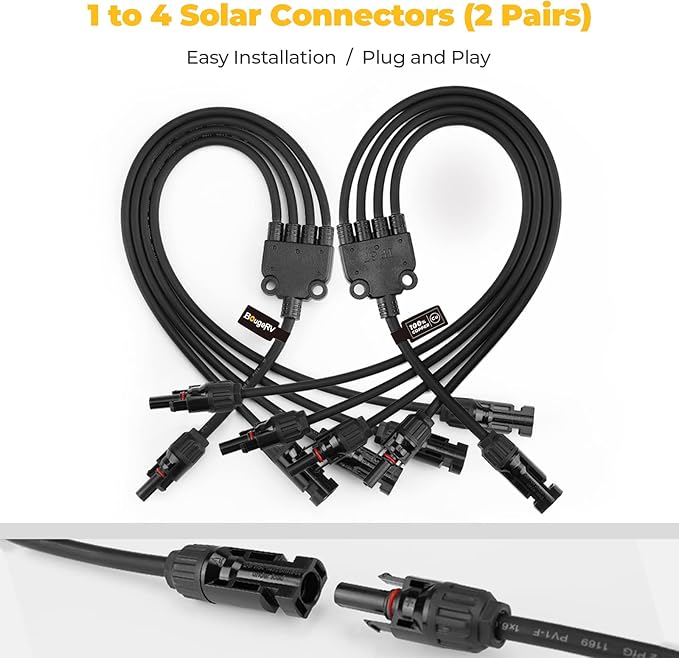

• 【Easy Install】There is a built - in lock in each male connector, you just need to press your fingers to the two sides of the built-in lock on the male connector, then you can connect or disconnect the connector easily, without using other tool. The connection will work stably with this built-in lock.

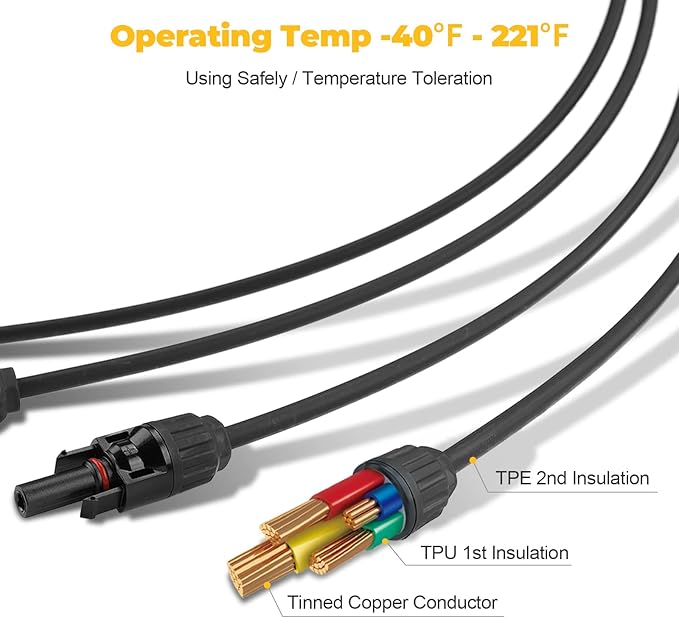

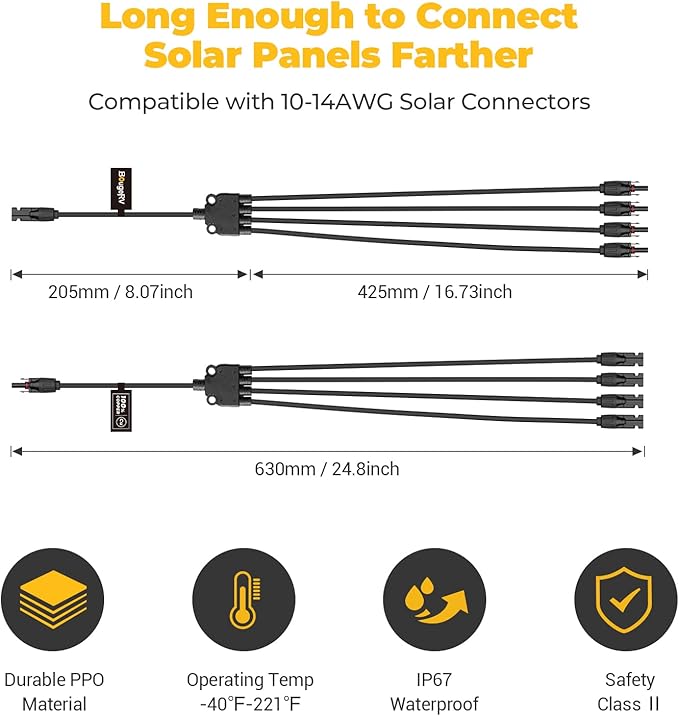

• 【Compatible】This connector is suitable for most conventional type solar connectors except the amphenol connector and other irregular type connector, which is also compatible with solar cable in 10AWG to 14AWG.

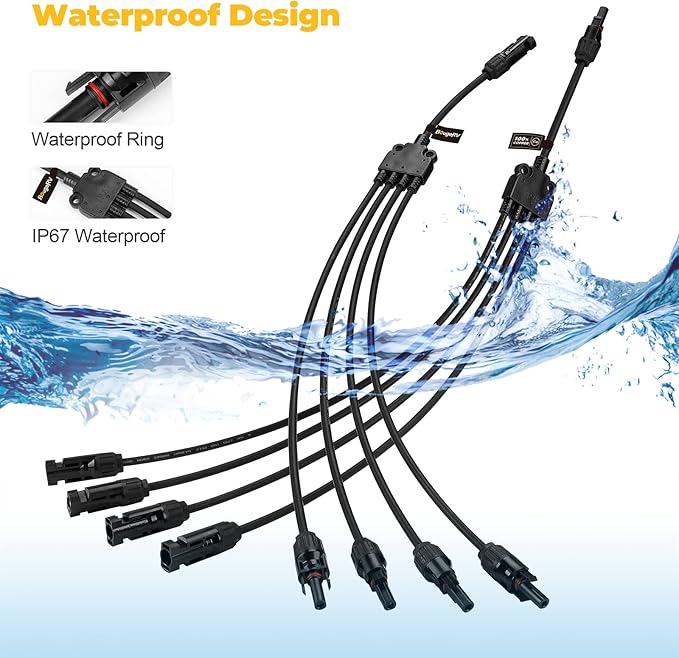

• 【IP67 Waterproof】The connector is waterproof and dust-proof with the waterproof ring in the male connector. Made with high-quality PPO material, solar Y branch connector is resistant to the aging and UV, which can work stably from -40℉ to 221℉. It is safe and durable to work outdoors.
• 【Warranty】BougeRV is dedicated to provide customers with high quality product through constantly improvement and also promise an 18 months warranty of each product.
