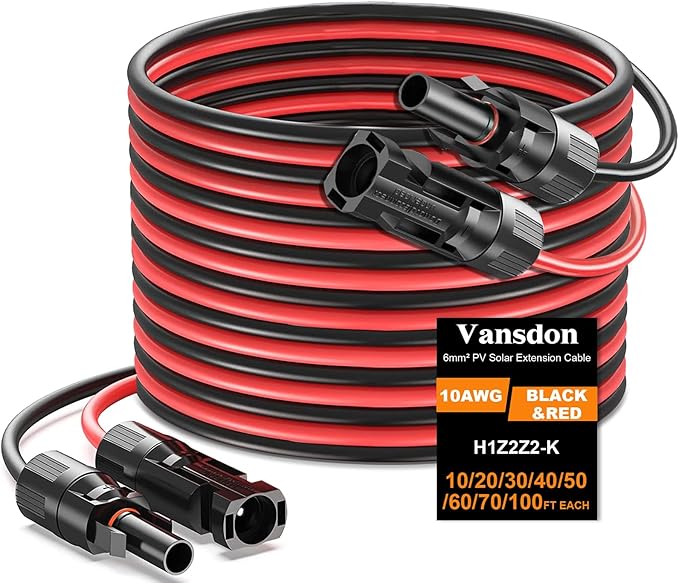

2x30 Feet Solar Panel Extension Cable- 10AWG Solar Cable Solar Panel Cable with Female and Male Waterproof Connectors for RV, Photovoltaic Systems

2x30 Feet Solar Panel Extension Cable- 10AWG Solar Cable Solar Panel Cable with Female and Male Waterproof Connectors for RV, Photovoltaic Systems

$54.34 USD
$54.34 USD
Sale Sold out
Shipping calculated at checkout.

About This

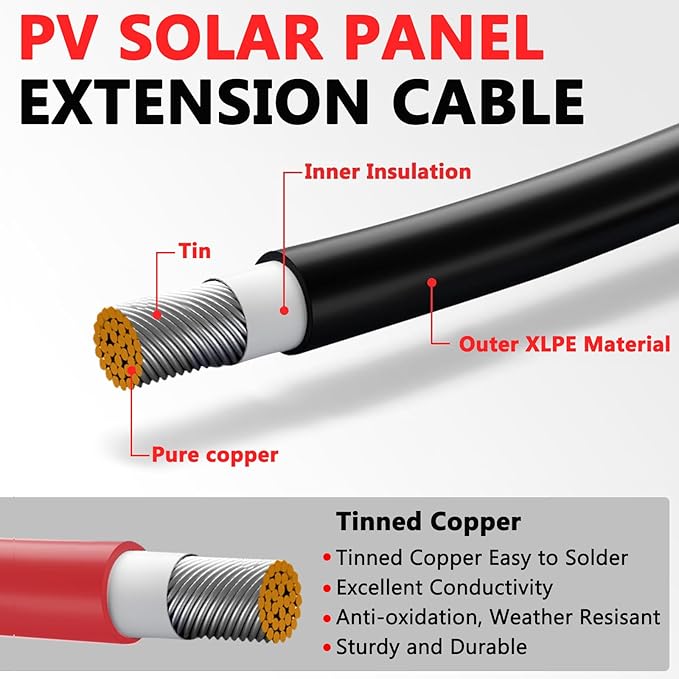

  • ใ€๐“๐ข๐ง๐ง๐ž๐ ๐‘๐ž๐ ๐‚๐จ๐ฉ๐ฉ๐ž๐ซ ๐–๐ข๐ซ๐žใ€‘: The one pair ( 1 x 30FT Black Solar Cable and 1 x 30FT Red Solar PV Cable).10AWG solar panel wire is made of tin plated conductive copper material, low resistance, which has better conductivity, thermal conductivity, and oxidation resistance than pure copper, can reduce power loss during use to improves charging efficiency.

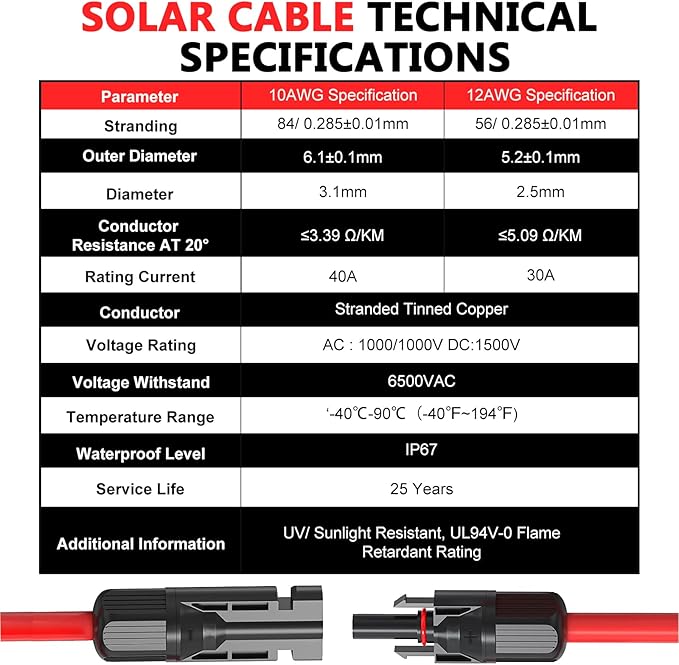

  • ใ€๐Ÿ๐ŸŽ๐€๐–๐† ๐’๐จ๐ฅ๐š๐ซ ๐‚๐š๐›๐ฅ๐žใ€‘: Professional photovoltaic solar cable, TรœV, CE, RoHS certification, Wire Gauge: 10AWG/6mmยฒ, Temperature Range: Environment -40ยฐC-90ยฐC, AC Test Voltage: 6500V, Conductor Resistance: (20ยฐC) โ‰คโ‰ค3.39ฮฉ/KM, Rated Voltage: DC:1500V (max voltage: DC 1800V), AC: 1000V, Rated Current: 54A. Conductor Construction: 84/0.285 n/mm. Weather resistance, UV-proof, anti-aging, moisture-proof, and corrosion-resistant.

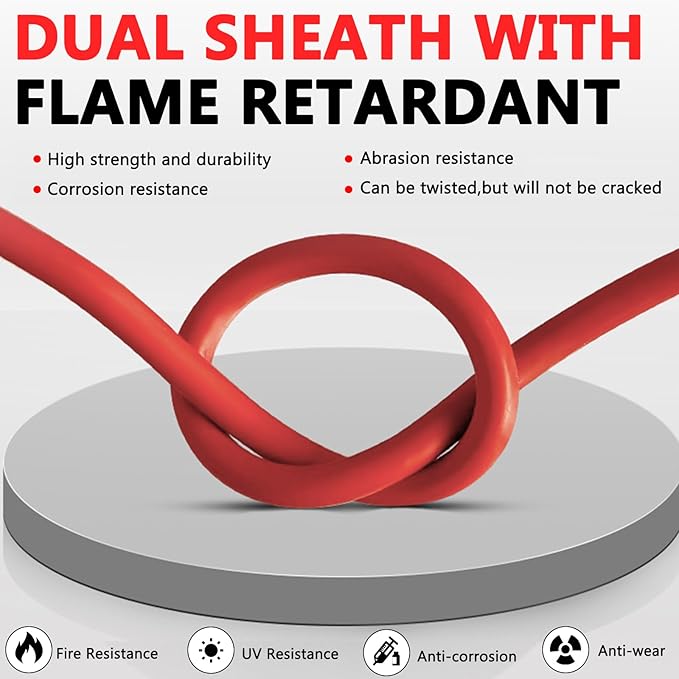

  • ใ€๐ˆ๐๐Ÿ”๐Ÿ• ๐๐ซ๐จ๐ญ๐ž๐œ๐ญ๐ข๐จ๐ง& ๐ƒ๐ฎ๐ซ๐š๐›๐ฅ๐ž ๐—๐‹๐๐„/๐—๐‹๐๐Ž ๐…๐ฅ๐š๐ฆ๐ž-๐‘๐ž๐ญ๐š๐ซ๐๐š๐ง๐ญ ๐ˆ๐ง๐ฌ๐ฎ๐ฅ๐š๐ญ๐ข๐จ๐งใ€‘: The IP67 waterproof rating allows the solar panel wire to work outdoors for a long time (about 30 years), and the PV solar cable made with XLPE and XLPO double sheaths insulating material, which is fireproof, corrosion resistant, and UV resistant, can withstand extreme heat and cold -40โ„‰-194โ„‰(-40โ„ƒ-90โ„ƒ). Designed for Extreme Weather, It can be buried directly in the ground.

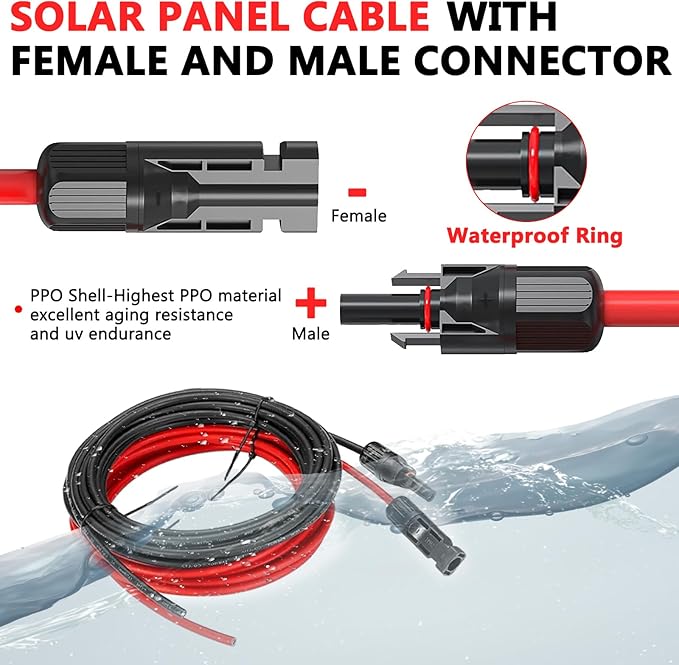

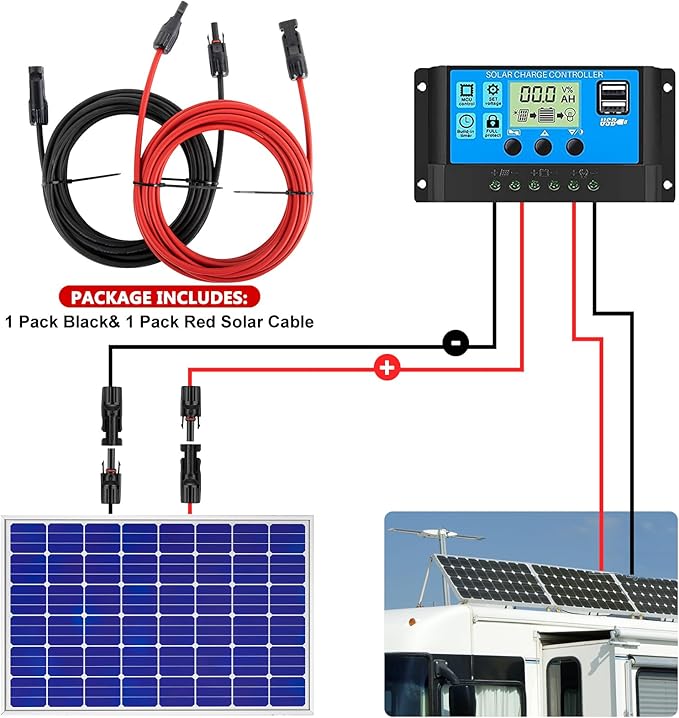

  • ใ€๐„๐š๐ฌ๐ฒ ๐ญ๐จ ๐Ž๐ฉ๐ž๐ง & ๐‹๐จ๐œ๐คใ€‘: Each solar extension wire is equipped with male and female connector at the wire ends (has been installed). which can be locked and opened by a stable self-locking system to connect multiple cables together for longer length. One end is connected to the solar panel, another is connected to the solar charge controller, which makes it easy to operate.

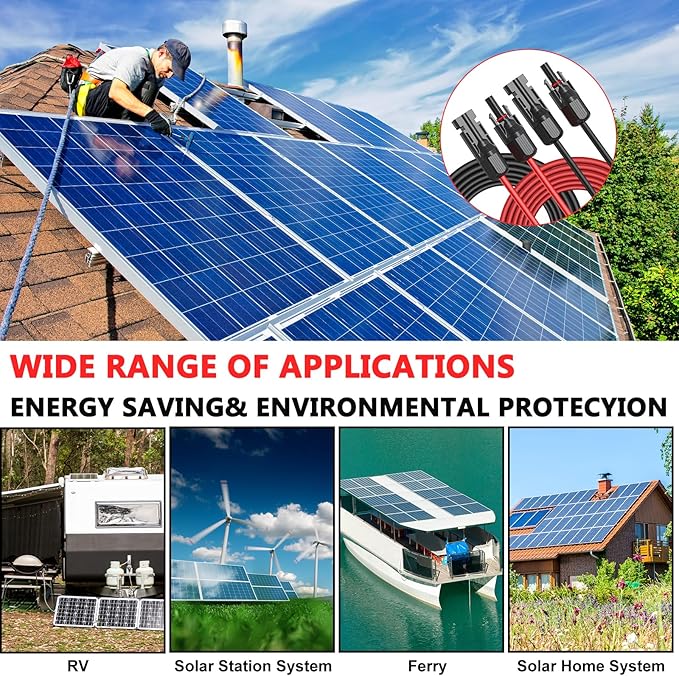

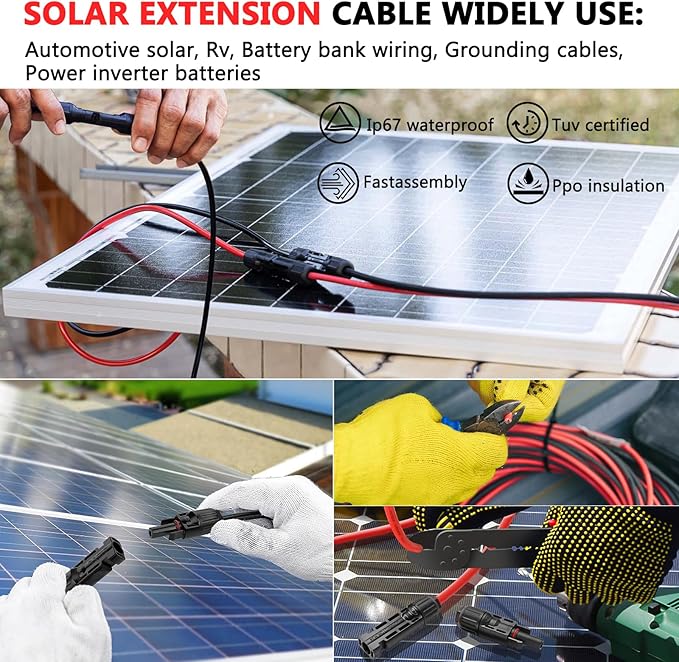

  • ใ€๐–๐ข๐๐ž ๐€๐ฉ๐ฉ๐ฅ๐ข๐œ๐š๐ญ๐ข๐จ๐งใ€‘: Solar extension cable is moisture, UV and corrosion resistant. Designed for long life and outdoor applications. Suitable for solar power plants, PV connectors, boats, RVs, and can be easily connected to similar connector types supplied with most solar modules. Choose from various wire gauge sizes (10AWG and 12 AWG) and length options (10ft, 20ft, 30ft, 40ft, 50ft, 60ft, 70ft, 100ft) to fit your specific solar panel system needs.

Overview

  • Color : Black& Red 10AWG
  • Brand : Vansdon
  • Connector Gender : Male-to-Female
  • Voltage : 1500 Volts
  • Plug Format : Type A or Type B
